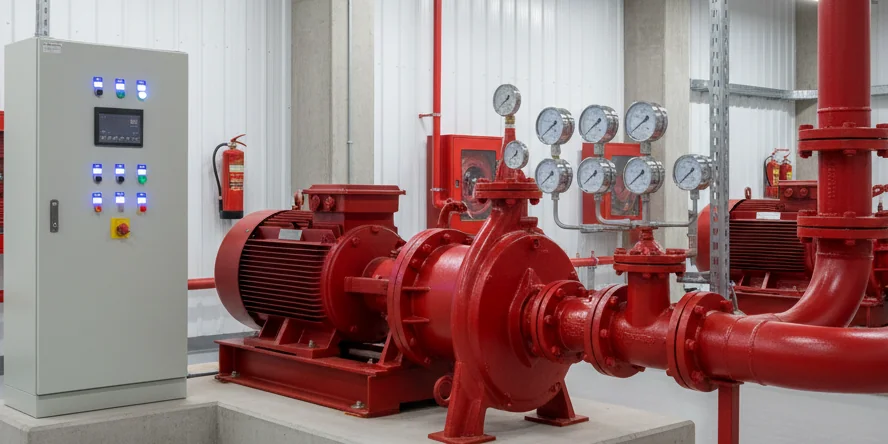

Introduction to MOTEC Fire Fighting Pumps
Fire protection is a critical safety requirement for buildings, industrial facilities, and commercial properties in Egypt. MOTEC is a leading manufacturer of fire fighting pumps and systems, certified to international standards including UL and FM. At Modern Machinery, we are the authorized distributor for MOTEC fire pumps in Egypt.
This guide covers the MOTEC fire fighting pump solutions available for Egyptian projects.
Diesel Engine Driven Fire Pumps
Diesel-driven fire pumps provide reliable fire protection independent of the electrical grid. Essential for facilities where power failure would be catastrophic during a fire event.
- Power Range: 50 to 500 HP
- Flow Range: 500 to 5,000 GPM
- Pressure: Up to 12 bar (175 psi)
- Engine: Water-cooled diesel engine with radiator
- Standards: UL/FM certified, NFPA 20 compliant
- Applications: Factories, warehouses, high-rise buildings, industrial plants, airports
Electric Motor Driven Fire Pumps
Electric fire pumps are ideal for facilities with reliable utility power and lower noise requirements.
- Power Range: 10 to 500 HP
- Flow Range: 250 to 5,000 GPM
- Motor: NEMA or IEC frame, TEFC enclosure
- Starting: Across-the-line, star-delta, or soft starter
- Applications: Commercial buildings, shopping malls, hospitals, schools, offices, residential towers
Vertical Turbine Fire Pumps
Vertical turbine pumps draw water directly from tanks, reservoirs, or wells. Ideal when the water source is below the pump level.
- Flow Range: 100 to 5,000 GPM
- Head: Up to 300 meters
- Applications: Underground water tanks, reservoirs, wells, elevated storage tanks
Jockey Pumps
Jockey pumps maintain system pressure in fire protection systems. They prevent the main fire pump from starting unnecessarily due to small pressure drops.
- Flow Range: 5 to 50 GPM
- Pressure: Maintains system pressure automatically
- Applications: Used in all fire pump systems
Fire Pump Controllers
MOTEC offers UL/FM listed controllers for diesel and electric fire pumps.
- Electric Controllers: Across-the-line, reduced voltage, soft start
- Diesel Controllers: Engine start/stop, battery charger, alarms
- Features: Phase monitor, pressure switch control, remote alarm contacts, weekly test timer
Why Choose MOTEC?
- UL/FM Certified: International quality and safety certification.
- Complete Range: Diesel, electric, vertical turbine, jockey pumps, and controllers.
- NFPA 20 Compliant: Meets international fire protection standards.
- Local Support: Installation, commissioning, and maintenance from Modern Machinery.
Contact Modern Machinery
Contact us at +202 23495011, +2010 64999333. Email: [email protected]. 88 Makram Ebeid, Nasr City, Cairo.
