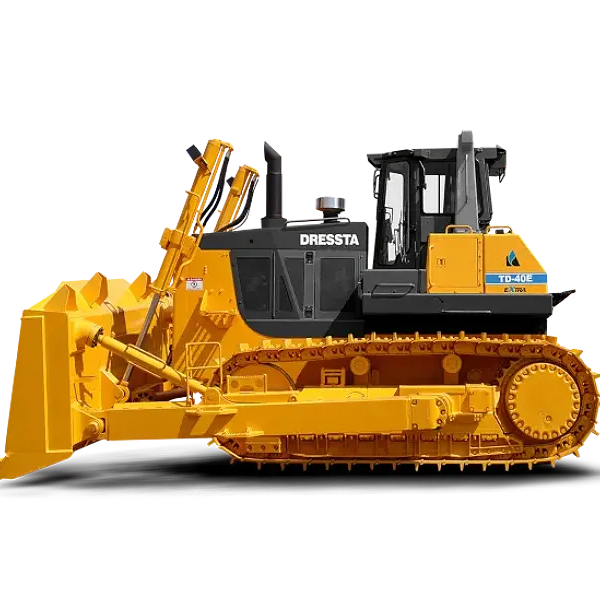

Dressta Crawler Dozers
TD-40E Extra Built for the Toughest Jobs
The Dressta TD-40E Extra crawler dozer delivers 515 HP with Cummins QSK 19 engine — the most powerful dozer in the lineup for mining, quarry, and heavy construction.
- Engine Power
- 515 HP
- Operating Weight
- 67,700 kg
- Blade Capacity
- 39.8 m³
- Engine
- Cummins QSK 19
- Cummins QSK 19 engine – 515 HP for maximum pushing power
- Operating weight 67,700 kg – exceptional stability
- Blade capacity up to 39.8 m³ – high productivity
- ROPS/FOPS certified cab with excellent visibility
- Centralized service points for easy maintenance
Overview
Overview
The Dressta TD-40E Extra is a heavy-duty crawler dozer designed for the most challenging mining and construction environments. With 515 HP and a durable Cummins QSK 19 engine, it delivers outstanding performance and reliability.
Engine
Powerful
Cummins QSK 19, 19L, 515 HP
Build
Heavy Duty
67,700 kg operating weight
Hydraulics
Advanced
Precise blade control
Technical Specifications
TD-40E Extra Technical Data
Detailed specifications of the Dressta TD-40E Extra crawler dozer.
Engine
| Engine Model | Cummins QSK19C |
|---|---|
| Net Power | 388 kW (520 HP) |
| Displacement | 19 L |
| Max Torque | 2,280 Nm @ 1,500 rpm |
| Emissions Level | EPA Tier 3 / EU Stage IIIA |
Dimensions & Performance
| Operating Weight | 66,600 kg (146,828 lb) |
|---|---|
| Transport Length | 5.75 m |
| Transport Width | 3.11 m |
| Transport Height | 4.41 m |
| Travel Speed (max) | 14.9 km/h |
| Blade Width | 4.81 m |
| Track Shoe Width | 610 mm |
Key Features
What Makes the TD-40E Extra Stand Out
Engineered for extreme conditions with proven reliability.
High-output engine
Tier 3 Cummins QSX15-C delivers durable 410 HP performance with excellent fuel efficiency.
Reinforced undercarriage
Lifetime-lubricated track rollers, bushings, and elevated drives improve longevity.
Operator-first cab
Pressurised, ROPS/FOPS-certified cab with HVAC, low-noise design, and panoramic visibility.
FAQ
Frequently Asked Questions
Common questions about the Dressta TD-40E Extra.
What kind of warranty does the TD-40M Extra come with?
The TD-40M Extra ships with a 24-month / 4,000-hour standard warranty (whichever comes first), covering the powertrain and major components.
How long is the lead time for delivery?
Lead times vary by configuration and destination, but typically range from 8 to 14 weeks for in-region deliveries.
Still have questions? Talk to our team →
Get a Quote
Ready to Power Your Operations?
Contact Modern Machinery today for pricing, availability, and technical support.
