Introduction to Pump Drives & Control Systems

Modern pumping systems require more than just high-quality pumps — they need intelligent control and drive systems to operate efficiently, reliably, and safely. Caprari offers a comprehensive range of drives, control panels, and protection systems designed to optimize pump performance, reduce energy consumption, and extend equipment life.

At Modern Machinery, we provide the complete Caprari drives and control range in Egypt.

CAPDRIVE – Frequency Converter

The CAPDRIVE is Caprari’s advanced frequency converter (VFD) designed specifically for pump control applications.

  • Type: Variable Frequency Drive (VFD)
  • Power Range: 0.75 kW to 630 kW
  • Control Mode: Sensorless vector control, V/Hz control
  • Protection: Overload, overvoltage, undervoltage, short circuit, earth fault
  • Communication: Modbus RTU, Profibus, Ethernet (optional)

Benefits:

  • Energy savings of 30–50% compared to fixed-speed operation
  • Soft start and stop reduces mechanical stress on the pump
  • Precise pressure and flow control
  • Built-in PID controller for constant pressure applications
  • Comprehensive motor and pump protection

Applications:

  • Constant pressure water supply systems
  • Variable flow pumping stations
  • Booster sets and pressure boosting
  • Irrigation systems with variable demand
  • Wastewater pumping with variable inflow

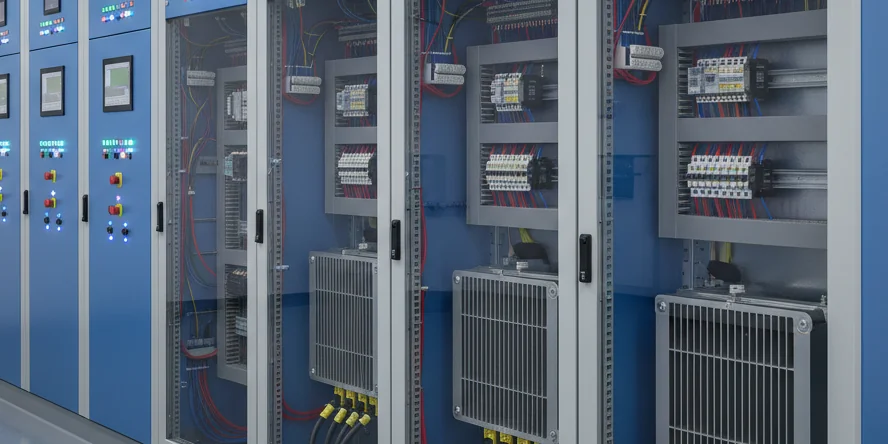

Electric Panels – Control & Monitoring

Caprari electric panels provide complete control and monitoring for pumping stations, from simple single-pump control to complex multi-pump systems.

  • Types: Direct-on-line (DOL), Star-Delta, Soft Starter, VFD panels
  • Features: Pump alternation, level control, dry run protection, phase failure protection
  • Monitoring: Current, voltage, power, flow rate, pressure, temperature
  • Communication: Remote monitoring via GSM, SCADA integration

Available Configurations:

  • Single pump control panels
  • Multi-pump control panels (2–6 pumps)
  • Fire fighting pump panels
  • Wastewater pump control panels
  • Custom-engineered solutions

VSD – Variable Speed Drive

Caprari’s variable speed drives offer robust and reliable speed control for pump motors in demanding applications.

  • Power Range: Up to 630 kW
  • IP Rating: IP21 to IP54 options
  • Cooling: Forced air or liquid cooling
  • Certification: CE, UL, CSA

Key Features:

  • Energy optimization algorithms
  • Built-in EMC filters for reduced electromagnetic interference
  • Multi-pump control with automatic pump rotation
  • Sleep/wake function for low-flow conditions
  • Data logging and trend analysis

MOTORGUARD MG1/MG2 – Motor Protection

Motor protection is critical for pump reliability. The MOTORGUARD series provides comprehensive protection for submersible and surface pump motors.

MOTORGUARD MG1

  • Electronic motor protection relay for three-phase motors
  • Protection against: Overload, phase imbalance, phase loss, dry running, overvoltage/undervoltage
  • Current range: 1–80 A
  • Pump-specific protection algorithms

MOTORGUARD MG2

  • Advanced motor protection with digital display
  • All MG1 features plus: Undercurrent protection for dry run detection
  • Data logging and event recording
  • Remote monitoring capability
  • Current range: 1–200 A

Why Caprari Drives & Control?

  • Integrated Solution: Caprari drives are designed to work seamlessly with Caprari pumps for optimal performance.
  • Energy Efficiency: Advanced VFD technology saves 30–50% on energy costs.
  • Reliability: Built to industrial standards with comprehensive protection features.
  • Easy Integration: Compatible with SCADA, BMS, and remote monitoring systems.
  • Local Support: Available through Modern Machinery with full technical support.
