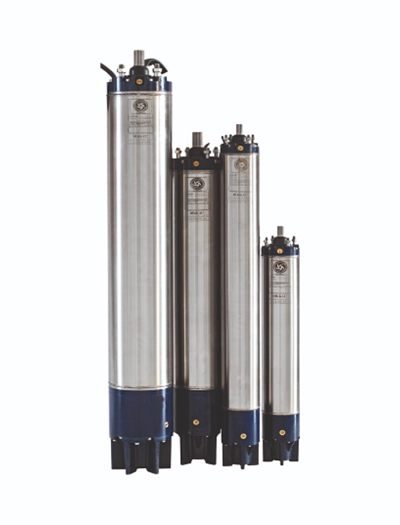

Motec Submersible Motors
Submersible Motors Reliable Power for Deep Well Pumps
Motec Submersible Motors deliver reliable power for deep well submersible pumps with ratings from 0.37 kW to 375 kW, IP68 protection, and advanced thermal protection.
- Power Range
- 0.37–375 kW
- Diameter
- 6–22 in
- Protection
- IP68
- Insulation
- Class F/H
- Oil-filled and water-filled configurations for different applications
- Advanced thermal protection with PTC thermistors
- Compatible with all major pump brands (NEMA/IEC standards)
Electrical Specifications
| Power Range | 0.37 – 375 kW (0.5 – 500 HP) |
|---|---|
| Voltage | 380V / 660V / 1000V / 3300V / 6000V |
| Frequency | 50 Hz / 60 Hz |
| Insulation Class | F / H |
| Efficiency Class | IE3 / IE4 (Premium) |
| Starting Method | Direct-on-line / Star-Delta / Soft Starter / VFD |
Mechanical Specifications
| Diameter Range | 6" – 22" (152 – 559 mm) |
|---|---|
| Motor Fill Type | Oil-filled / Water-filled |
| Shaft Material | Stainless steel AISI 420 / 431 |
| Motor Housing | Stainless steel AISI 304 |
| Max Axial Thrust | Up to 180 kN |
Environmental & Protection
| Protection Class | IP68 (continuous submersion) |
|---|---|
| Max Ambient Temp | 40°C (104°F) |
| Max Water Temperature | 30°C (standard) / 50°C (optional) |
| Max Installation Depth | 600 m (from motor) |
| Cooling | Water-cooled (jacket flow min 0.3 m/s) |
Advanced Thermal Protection
Built-in thermistors (PTC) and bimetallic thermal overload protection prevent motor damage from overheating, ensuring reliable operation even in high-ambient-temperature conditions.
Dual Seal Protection
Two independent mechanical seals (silicon carbide / carbon) with an oil chamber between them provide redundant protection against water ingress, even in sand-laden water.
Premium Winding Insulation
Class F/H insulation system with moisture-resistant winding wire ensures long motor life even in humid environments and frequent start-stop cycles.
What is the difference between oil-filled and water-filled submersible motors?
Oil-filled motors use dielectric oil for cooling and lubrication, offering better heat dissipation and higher power density. Water-filled motors use a water-glycol mixture and are more environmentally friendly with no risk of oil leakage. Both types are available from Motec depending on your application requirements.
Are Motec submersible motors compatible with other pump brands?
Yes, Motec submersible motors are designed to international NEMA and IEC standards, making them compatible with most major pump brands including Caprari, Grundfos, and Franklin. The motor-pump coupling follows standard dimensions.
Still have questions? Talk to our team →

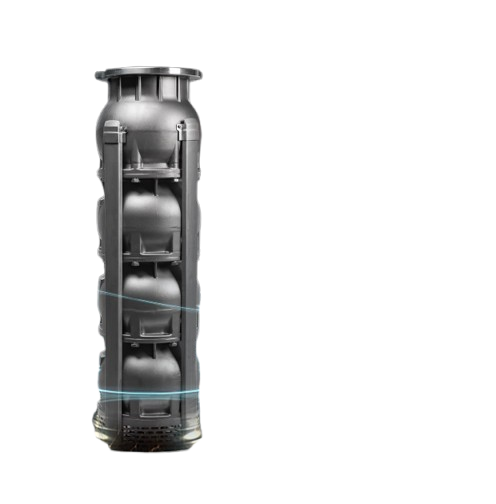

Motec Deep Well Pumps
